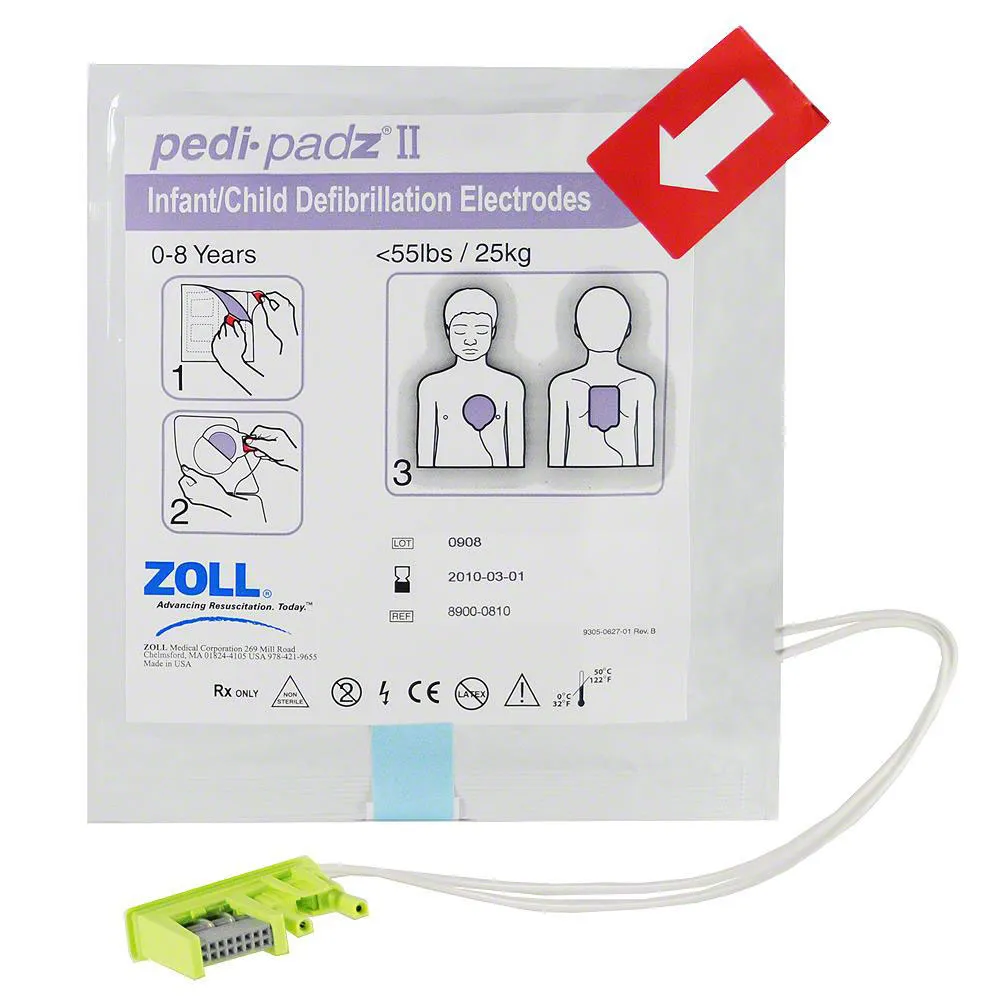

ZOLL Pedi-Padz II

The ZOLL® Pedi-Padz II Pediatric Defibrillation Electrode Pads are specifically designed for infants and children 8 years of age or younger or weighing less than 55 lbs (25 kg). Engineered for use with the ZOLL AED Plus® and ZOLL AED Pro®, these pads ensure safe, effective defibrillation by automatically activating ZOLL’s Intelligent Pediatric Capability.

When Pedi-Padz II are connected, the AED instantly detects pediatric pads and switches to a pediatric-specific ECG analysis, energy levels, and treatment algorithms. Clear voice and text prompts notify the rescuer that the AED is analyzing a child’s heart rhythm, helping eliminate confusion and ensuring appropriate therapy is delivered.

The pads feature a visual anatomical placement guide, making it easy for rescuers to correctly position the electrodes during a high-stress pediatric emergency. Designed for reliability and continuity of care, Pedi-Padz II are also compatible with select ZOLL ALS defibrillators, allowing seamless patient care once advanced medical responders arrive.

With a minimum 18-month shelf life from date of manufacture and clearly marked expiration date, these single-use pediatric pads are essential for schools, childcare facilities, pediatric clinics, EMS units, and public access AED programs.

Key Features & Benefits

• Designed for pediatric patients ≤8 years or ≤55 lbs (25 kg)
• Compatible with ZOLL AED Plus® and AED Pro®
• Intelligent Pediatric Capability automatically adjusts therapy
• Pediatric-specific ECG analysis and energy delivery
• Voice and text prompts confirm pediatric mode
• Visual anatomical pad placement guide
• Single-use, disposable electrodes
• Minimum 18-month shelf life


Technical Specifications

Device Energy Levels: 50 J, 70 J, 85 J

Patient Analysis: Pediatric-specific algorithm

Materials:

• Backing: Closed Cell Polyethylene
• Conductive Gel: Hydrogel
• Conductive Element: Tin

Connection Method: Pre-attached

Impedance Class: Low

Lead Wire Length: 0 in / 86.4 cm

Front Electrode (Chest)

• Shape: Round
• Total Diameter: 3.7 in / 9.4 cm
• Total Area: 10.75 sq in / 69.4 cm²
• Conductive Gel Diameter: 2.85 in / 7.24 cm
• Conductive Gel Area: 6.37 sq in / 41.1 cm²

Back Electrode

• Shape: Rectangular
• Total Size: 5.43 × 3.5 in / 13.8 × 8.9 cm
• Total Area: 19.0 sq in / 122.6 cm²
• Conductive Gel Size: 3.58 × 2.18 in / 9.1 × 5.5 cm
• Conductive Gel Area: 7.81 sq in / 50.3 cm²

Compatibility

AEDs

• ZOLL AED Plus®
• ZOLL AED Pro®

ALS Defibrillators (Continuity of Care)

• ZOLL E Series
• ZOLL M Series
• ZOLL R Series
• ZOLL X Series
